Fiber Laser Welding Machine

Applicable Materials
Aluminum, iron, stainless steel, copper and other various metal materials. Same material or mixed material welding are both available.

Technical parameter

WFC1000-A welding laser
Wavelength(nm) 1064
Fiber spectroscopy (n) 1/2
Fiber diameter(um) 50, 100, etc.
Fiber length(m) 10, 15 and etc.
Avg. power(W) 1000
Cooling Water cooling
Wavelength(nm) Storage Temp: -20°C~60°C; working humidity:< 70% / Working temp: 10°C~35°C; working humidity: < 70%
Gross power (Kw) 1.5
Power supply 220VAC±10%;50/60Hz
Total weight (Kg) 100
Dimensions (mm) 425*970*168
WTA-S-A welding worktable
Working area(mm) 4000*300 (standard or custom)
Min. focusing spot diameter (mm) 0.2
Galvanometer positioning accuracy (mm) < 0.02
Welding seam teaching method Coaxial CCD teaching
Lifting area (mm) 0~300 (standard or custom)
Vector graphics format supported PLT
Working environment Storage temp: -20°C~60°C; storage humidity:< 70% / Working temp:10°C~35°C; working humidity:< 70%
Gross power (Kw) 5
Power supply Three phase 380VAC±10%;50/60Hz
Total weight (Kg) 200
Dimensions (mm) 1000*1200*1600 (excl. fiber stand)

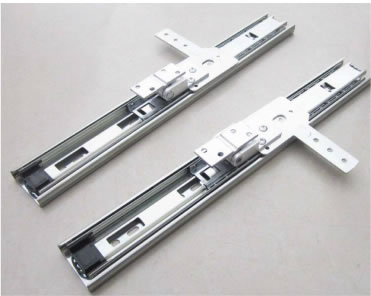

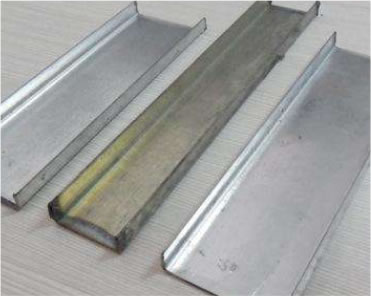

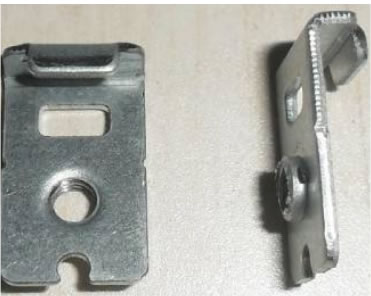

Samples:

Product Feature
1. Welding heads can be freely configured to satisfy the different cost and working environment requirements.
2. Customization, separation, assembly service of welding laser or worktable are available to fit your production line.
3. IPC is adopted for man-machine interaction, which provides simple and reliable operation.
4. Swing welding: various light paths can be created by the deflection of lens.
5. Low operating cost, low material consumption, easy maintenance, low shutdown loss.
6. Compared to the traditional welding method, non-contact welding allows for remote welding with high accessibility.
7. Applicable to a wide range of materials: stainless steel, carbon steel, galvanized plate, brass, aluminum alloy and etc.
