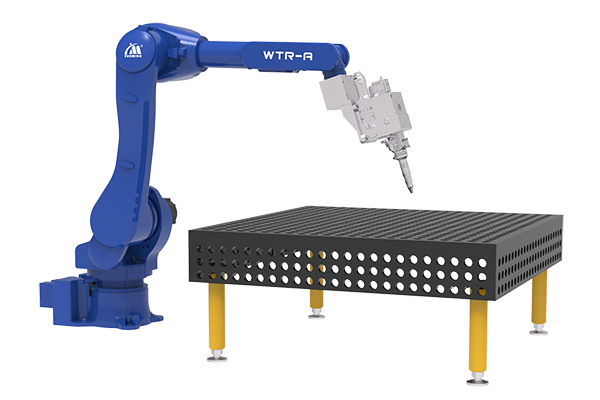

WTR-A Manipulator Laser Welding Machine

Applicable Materials

This manipulator fiber laser welding machine is applicable to a broad range of metal materials including stainless steel, carbon steel, galvanized sheet, aluminum alloy, etc.

Laser Continuous laser 1000, 1500, 2000, 3000, 4000(W)
Manipulator Yaskawa/Ar1440
Manipulator cabinet YRC1000
Welding head Wobble head, wobbling stroke 50*50mm
Cooling unit Dual temperature control 0-7000
Machine power < 3Kw
Power supply 380V, 50/60Hz
Machine weight < 250kg
Output interface QBH
Fiber length 10m, 15m, 20m (optional)
Laser peak power 1000W, 1500W, 2000W, 3000W
Fiber core 50, 100um
Working environment Storage temperature: -20~60℃ , humidity< 60%
Max. power < 25KW
Power supply 380V, AC±10%,50/60Hz
Laser weight < 150KG

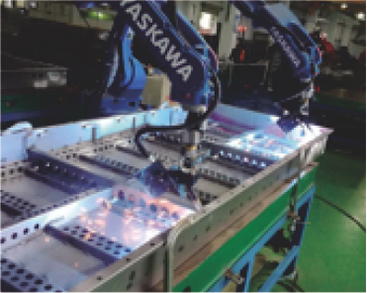

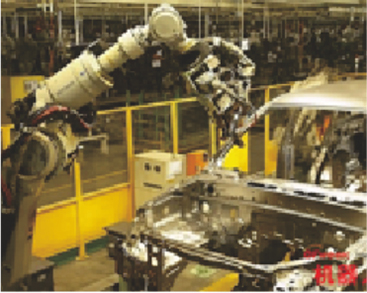

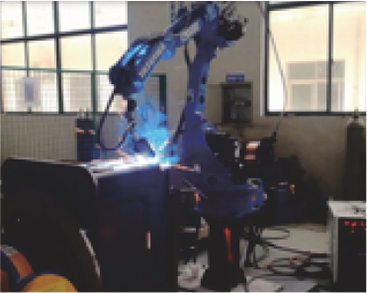

1.Imported industrial robot manipulator features high positioning precision, large working area, 6-axis coordinate movement and 3D components processing capability.
2.Imported fiber laser generator provides quality light spot, stable power output and excellent welding performance.

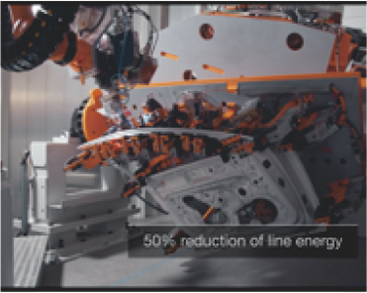

3.The manipulator laser welding machine can well adapt to components of different shapes. Its high flexibility can satisfy the welding requirements of complex workpieces.
4.Teaching function can be conducted on complex workpieces—operators can set the trajectory according to client’s requirements. Efficient operations can be achieved even under severe and restrained working conditions.
5.Automatic control is achieved. Core components of the welding machine barely requires maintenance so as to reduce cost.
6.Non-contact vision positioning system is optional to detect and correct welding seam deviations and ensure the welding quality.
