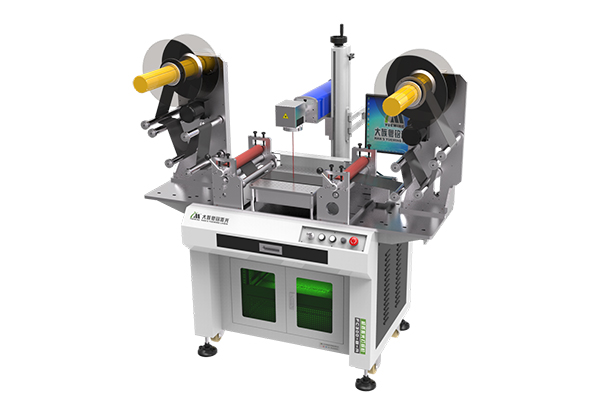

Laser die-cut for Label Roll FC300-B-A

Model FC300-B-A
Laser power(W) 20-50(Fiber)/3-5(UV)/30(CO2)
Working area (mm) Roll width: 10-300
Working speed(mm/s) 0-7000
Weight (Kg) 300
Overall dimension(mm) 1450x770x1600
Power supply AC220V/10A±5%
Working environment Temp.: 10 ~30 ℃, Humidity: 5 ~8 5 %, no condense water, no dust or less dust.
Total Power (kw) 2

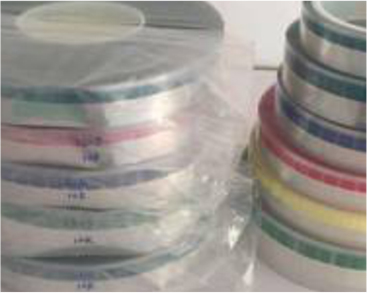

Laser Processing Examples:

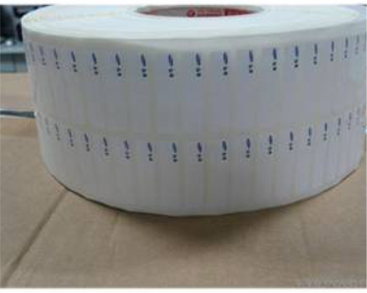

  • Label marking

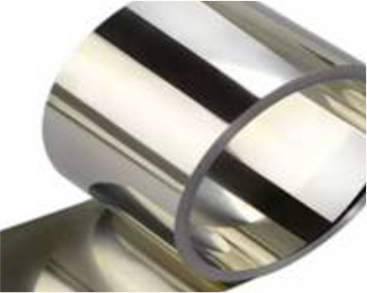

  • Steel strip marking

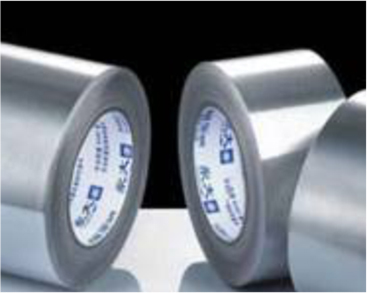

  • Aluminum foil marking
  • Film marking

Product Feature
1.Roll to roll automatic loading and unloading; automatic alarm for full or short of material; adjustable marking speed; long time running process without accumulated errors; automatically processing products.
2.Vision positioning process and sensor positioning process are optional without affecting the efficiency and marking accuracy can be improved to ±0.1mm.
3.Imported core components are optional with excellent performance, stable quality and long service life.
4.The laser die-cut adopts an integrated design of machine hardware, control system and working platform to achieve small footprint and easy operation.
5.Self-developed marking control software has a powerful and user-friendly interface, simple and fast operations, which make it easy to learn and use.
6.High compatibility: Support DXF, PLT vector and image format; Support dot matrix fonts and TTF fonts as well as self-developed fonts; Support two-dimensional code, pictures, characters and other content marking; Support a variety of galvo head correction methods; Able to meet customer needs of different grades.
7.Diverse laser sources are optional: UV, fiber or CO2 laser source, suitable for processing metal, PE, cloth and a wide range of materials.
