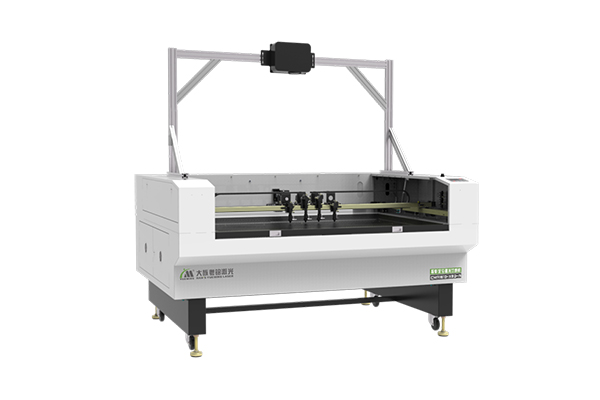

Four Heads Projection Positioning Laser Cutting Machine, CMA1610-XEQ-A/CMA1508-XEQ-A

Applicable materials
Cotton, linen, leather, paper, chemical fiber and other textile fabrics.

Technical Parameter

Model CMA1610-XEQ-A CMA1508-XEQ-A
Laser power (W) 80~130 60-130
Working area (mm) 1250*950 1500*800
Overall dimension (mm) 2200*1690*2600 2110*1598*1140
Weight (kg) ≤450 ~400
Speed (m/min) 0~30
Power supply 220-240V,50/60Hz
Gross power ≤5000 ~3700
Working environment Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust.

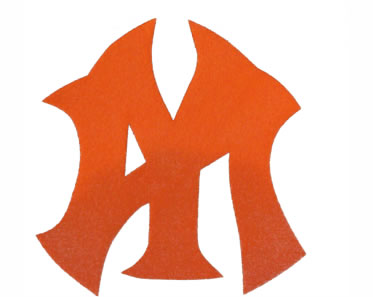

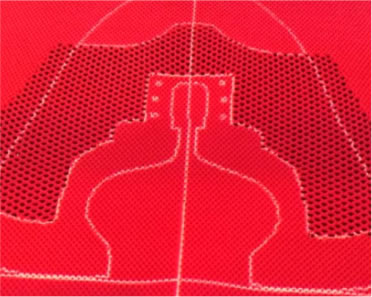

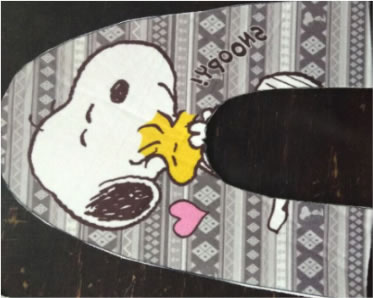

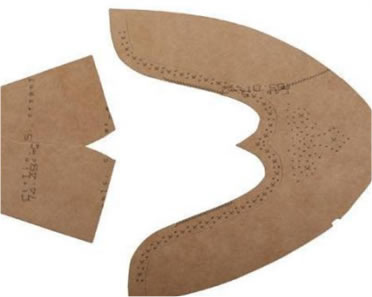

Samples:

Feature
1. Motion structure with four electric laser heads on a single beam greatly improves processing efficiency.
2. Reinforced honeycomb worktable and slatted cutting worktable are optional and selected on the basis of the cutting materials.
3. The high-rigidity sheet metal bending welded machine case in combination with the self-developed motion control system guarantee the stable performance of the laser cutting machine.
4. YUEMING independently developed laser cutting software features functions like projection positioning, projected image offset revision, translation and rotation. Customization and upgrade services are available.
5. Our patented projection positioning system can satisfy the automatic cutting and processing demands for sheet fabrics in the clothing industry.
