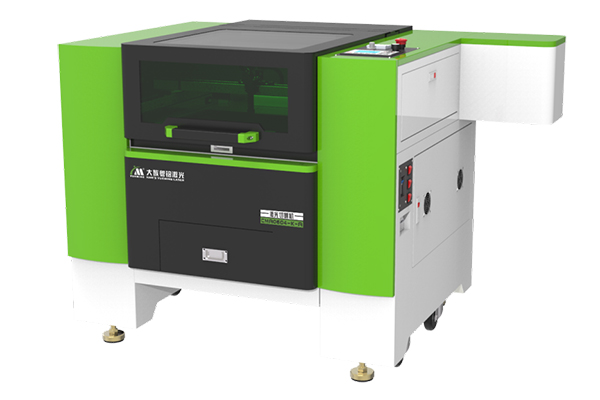

Up&Down Table Laser Engraving & Cutting Machine Series

Applicable Materials
Wood products, paper, plastic, rubber, acrylic, jade and other non-metallic materials.

Technical parameter

Typical version
Model CMA6040KⅡ CMA1080-K CMA1390-K
Laser power (W) 60~130
Up-down adjustable distance (mm) 315 150 245
Working area (mm) 600×400 1000×800 1300×900
Overall dimension (mm) 1850×920×1100 1750×1450×1150 2200×1560×1250
Weight (kg) 260 450 410
Speed (m/min) 0~30
Power supply AC220V±10%
Working environment Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust.
Latest version
Model CMA0604-K-A CMA1008-K-A CMA1309-K-A
Laser power (W) 60~130
Up-down adjustable distance (mm) 200~300
Working area (mm) 600×400 1050×800 1380×950
Overall dimension (mm) 1540×1050×1100 1825×1580×1080 1980×1750×1090
Weight (kg) 420 525 640
Speed (m/mim) 0~30
Power supply Single phase 220-240V,50/60Hz
Working environment Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust.

Samples:

Product Feature
1. YUEMING self-developed SmartCarve software and motion control system adopt high-speed interpolation algorithms to achieve the high-speed and stable laser engraving.
2. Supports Ethernet (10/100M) and USB 2.0 transmission with a max. transmission rate of 12M and a max. length of 5m.
3. Blackout continue engraving. Work hour preview with precision down to the millisecond.
4. Dynamic display of working trail and real time display and track of coordinate point and processing schedule.
5. An electric lifter is equipped for the engraving and cutting of workpieces with different height. The lifter features high loading capacity to satisfy your different production requirements.
6. Rotary clamps are optional for cylindrical product engraving.
