WFQ Fiber Laser Welding Series

Applicable Materials
The WFQ fiber laser welding series is compatible with stainless steel, carbon steel, galvanized plate, brass, aluminum alloy and other metal materials. This fiber laser welder can be also used for welding plastic products, mainly the precise parts of mobile phones, laptops, tablet computers and wearable devices, such as antenna, earphone, battery, frame, and back covers.

Technical parameter

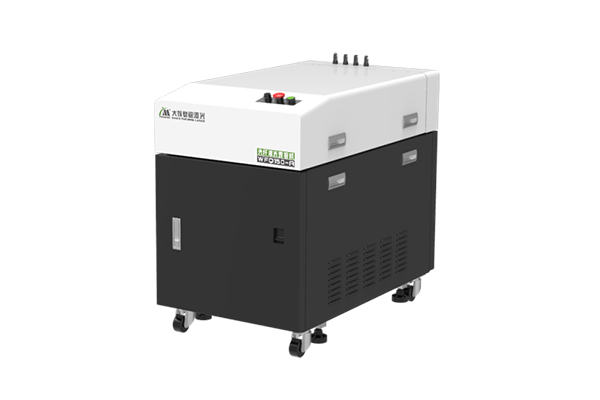

WFQ150-A welding laser
Wavelength(nm) 1064
Fiber spectroscopy (n) 1/2/4
Fiber diameter(um) 50
Fiber length(m) standard: 5 optional: 10, 15, 20 and etc.
Laser peak power(W) 1500
Avg. power(W) 150
Max. energy of single point(J) 15
Cooling Air cooling
Working environment Storage Temp: -20°C~60°C; working humidity:< 70% / Working temp: 10°C~35°C; working humidity: < 70%
Gross Power (Kw) < 2.2
Power supply 200~240V;50~60Hz
Gross weight (Kg) 80
Dimensions (mm) 980 x 580 x 800

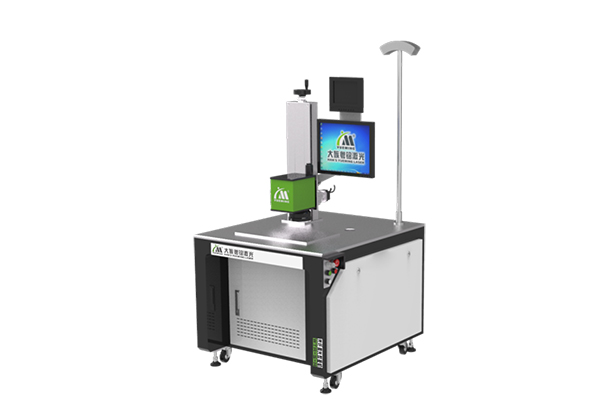

WTA-S-A welding worktable
Working area(mm) standard: 70x70 optional: 90x90, 110x110
Min. focusing spot diameter (mm) 0.2~0.4
Galvanometer positioning accuracy (mm) < 0.02
Lifting method Manual (electric lifter automatic lifting available)
Lifting area (mm) 0~300
Vector graphics format supported PLT
Working environment Storage temp: -20°C~60°C; storage humidity:< 70% / Working temp:10°C~35°C; working humidity:< 70%
Gross power (Kw) < 0.8
Power supply 200~240V ;50~60Hz
Total weight (Kg) 200
Dimensions (mm) 900 x 880 x 1600(excl. fiber stand)

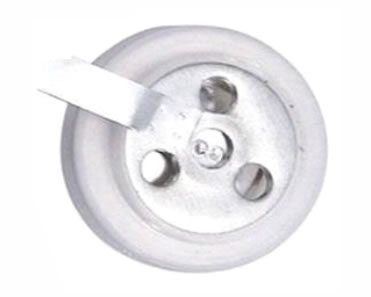

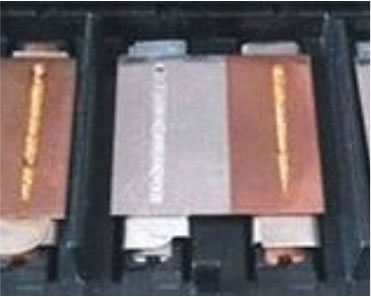

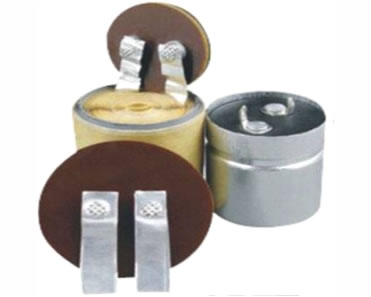

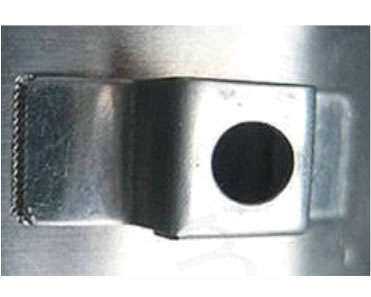

Samples:

Product Feature
1. Spectroscopic welding heads can be freely configured to satisfy the different cost and working environment requirements.
2. Customization, separation, assembly service of welding laser or worktable is available to fit your production line.
3. IPC interface, which provides simple and reliable operations.
4. High-speed spectroscopy: light path can be easily changed by controlling the deflection of lens.
5. Galvanometric system: For single point welding, the superior galvanometer featuring quicker speed than traditional XY axis platform.
6. The fiber laser welding machine features lower operating cost, lower material consumption, easier maintenance and lower shutdown loss.
7. Air cooling. Compact structure. Small occupied area.
8. Compared to the traditional welding method, non-contact welding allows for remote welding with high accessibility.
