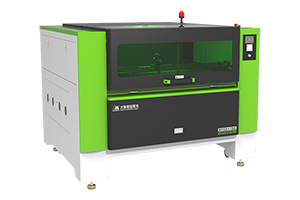

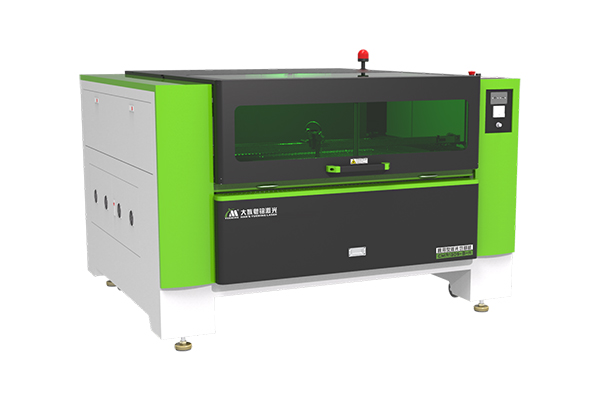

1300×900mm Single Head CO2 Laser Cutter, CMA1309-B-A Laser Cutting System

Applicable Materials
Wooden products, paper, leather, cloth, polymethyl methacrylate, epoxy resin, acrylic, woolens, plastics, rubber, bamboo ware, garment materials, leather products, mobile phone accessories, adhesive decals, rhinestone, plastic nozzle, jade and other non-metallic materials.

Cutting System

Model Version Laser Power (W) Laser Head Wokring Area (mm) Overall Dimension (mm) Weight (Kg) Repeated Positioning Accuracy (mm) Speed (m/min) Supply Voltage Working Environment
CMA1309-B-A HoLi 60~130 Single 1300 × 900 1910 × 1710 × 1370 525 ±0.1 0~30 AC 220~240 50/60Hz Temperature: 5~40℃; Humidity:5~80%. No condensation, no dust or less dust.

Laser Processing Examples:

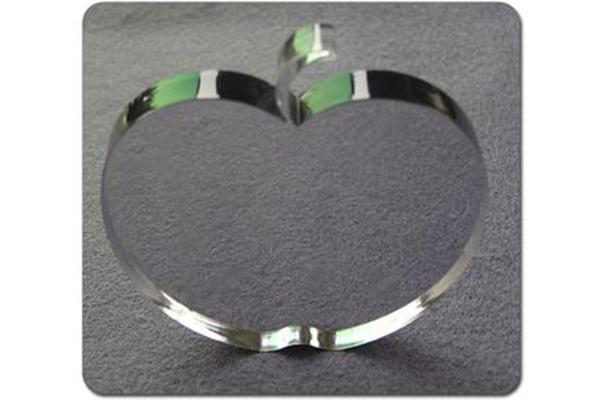

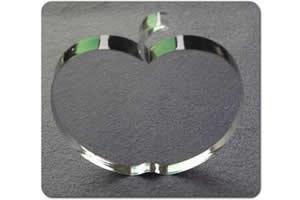

  • Acrylic crafts laser cutting

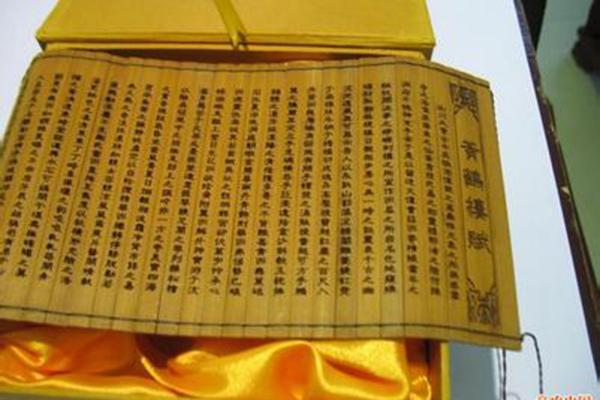

  • Bamboo slip laser engraving

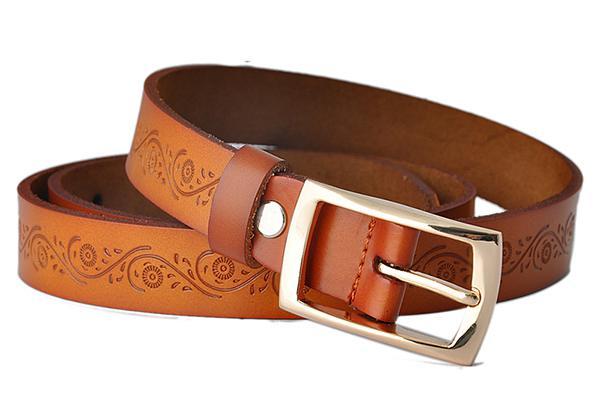

  • Belts laser cutting and engraving
  • Organic glass display of laser cutting

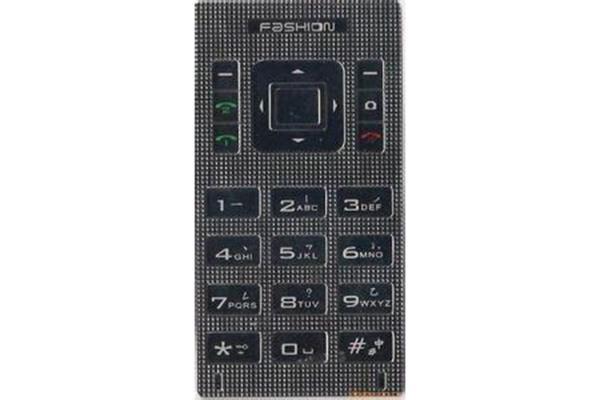

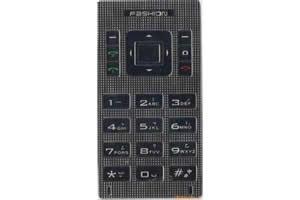

  • Phone key laser cutting

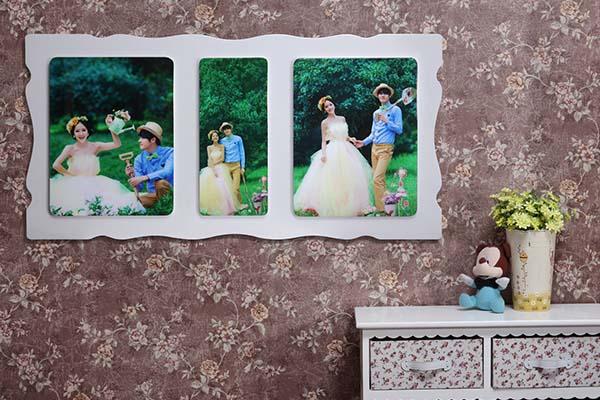

  • Plastic and wooden frame laser cutting

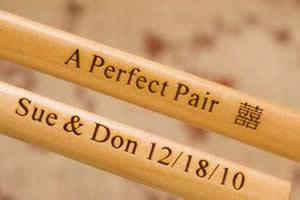

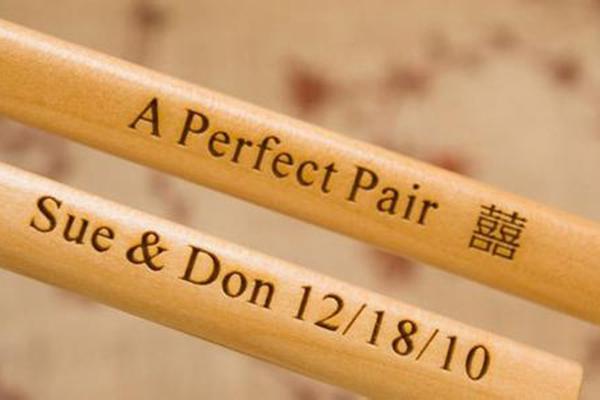

  • Wood laser engraving

Product Feature
1. The laser cutter body is integrated with various auxiliary equipment’s power supply. The machine’s back is designed with a large cabinet for storing auxiliary equipment.
2. Independently researched and developed SmartCarve software can realize high-speed and stable running for precision laser cutting.
3. No. CMA1309-B-A laser cutting system supports 10/100 M Internet and USB 2.0 transmission.
4. This laser cutter supports the display of dynamic process path and coordinate points, with real-time display of processing progress.
5. This laser cutter supports engraving recovery after power off, as well as a working time preview within extreme precision.
6. Optional large format camera and projector positioning function
