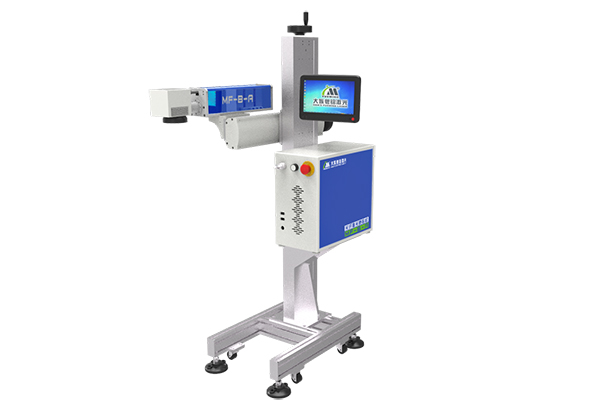

50W Automated Assembly Line Fiber Laser Marking Machine, MF50-B-A Laser Marking System

Applicable Materials
The MF50-B-A is applicable for surface marking of various alloy materials, such as plastics, stainless steel, aluminum oxide, cast iron, wooden products, copper and so on. For example, beverage bottle marking, cigarette case marking, aluminum profile marking, hair-care products marking and perfume bottle marking.

Model Laser power (W) Marking area (mm) Working distance (mm) Minimum line width
(mm)
Minimum character
(mm)
Supply
voltage
Dimension(mm) Weight
(Kg)
Working
environment
Total power
(Kw)
MF50-B-A 50 70X70 110x110 175X175 120 188 280 0.05 0.5 AC220V±10%, 50/60Hz 450 X 210 X 380( Power box)
730 X 450 X 1350(Lifter)
40 Temp:5~ 35°C, Humidity:5~85%. No condensate water, no dust or less dust. 0.8

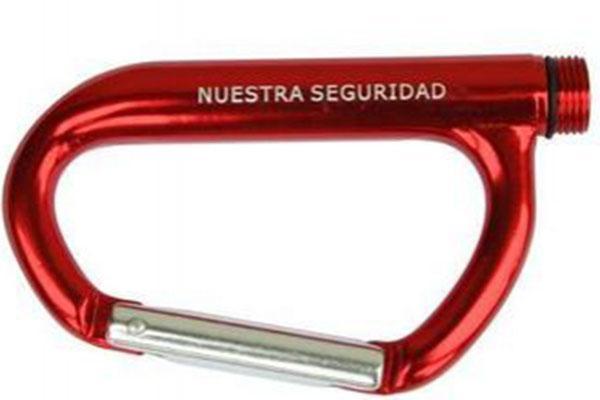

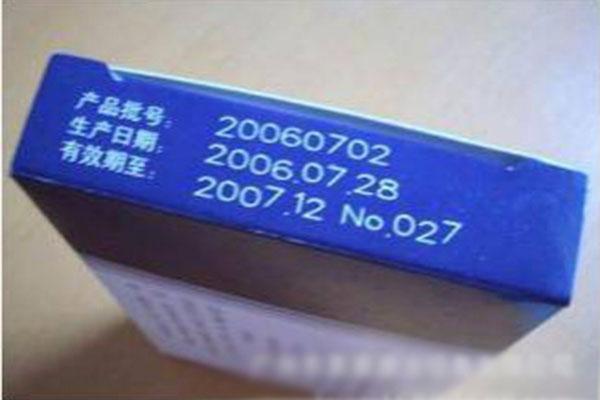

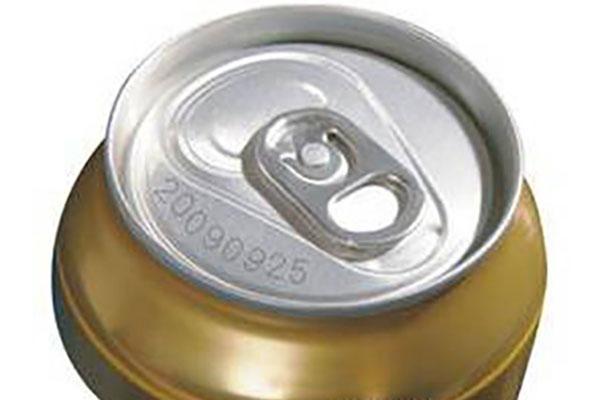

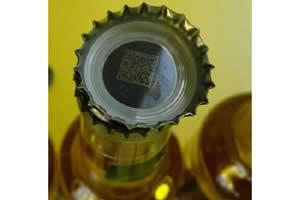

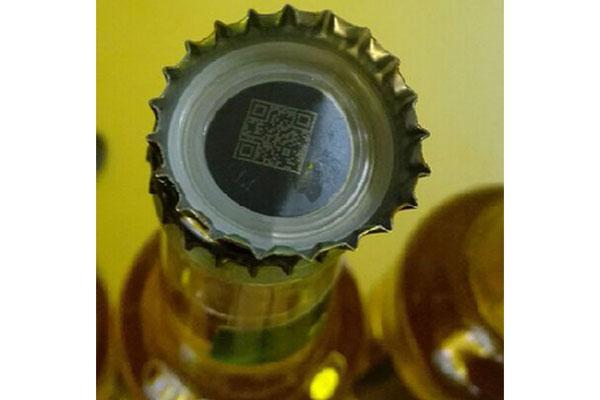

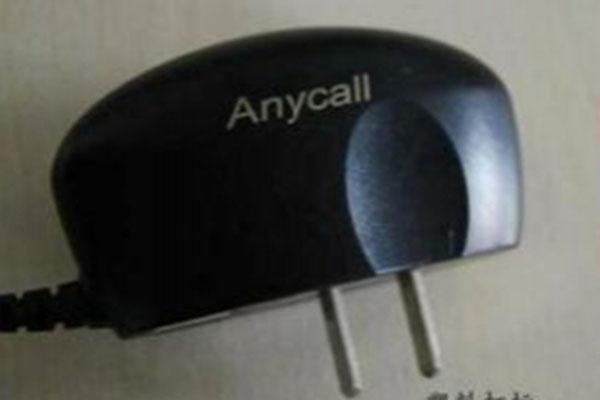

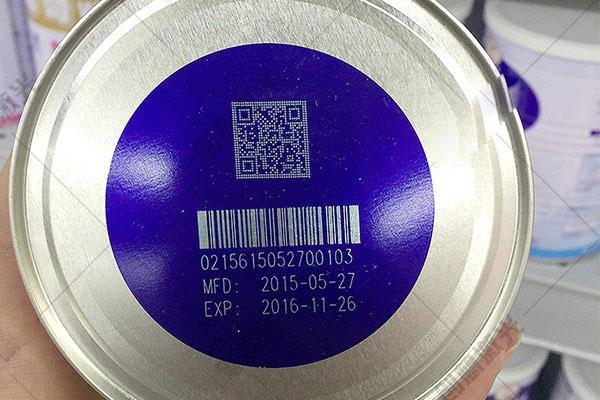

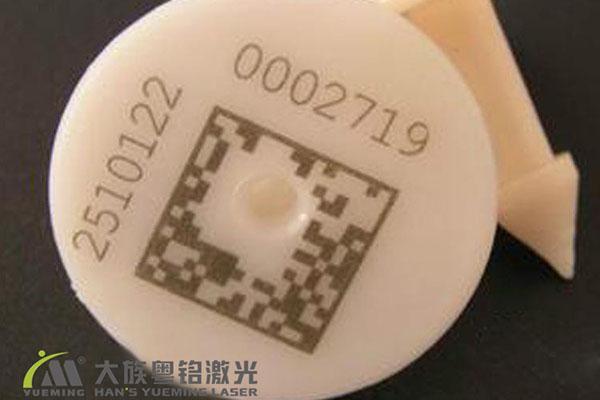

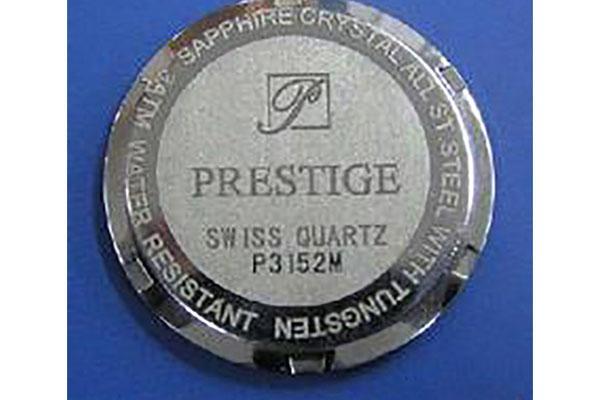

Laser Processing Examples:

Product Feature
1. The highly integrated fiber laser system has high-quality light spot, a laser power with uniform density and a stable laser output power. Even when processing on high-contrast materials like aluminum, gold, or silver, there will be no shadows or virtual open phenomenon.
2. A high-speed digital scanning galvanometer features a small volume, high speed and excellent stability.
3. The modular design, split fiber power box and lifting platform are designed to ensure flexibility of the equipment in order to satisfy complex placement requirements.
4. Adoption of embedded operation system brings good touch operation interface. It supports various fonts, bar code and QR code, which can satisfy most applicable technique requirements on market.
