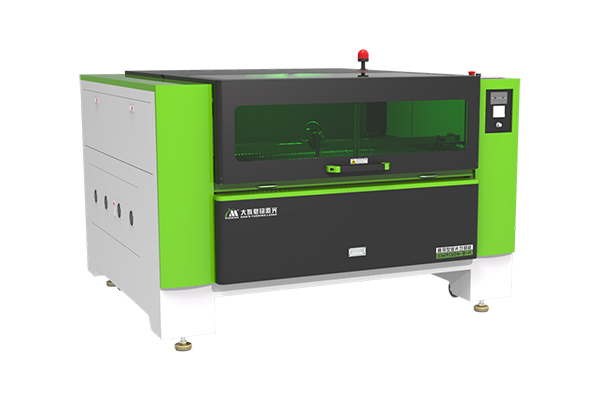

1450 × 1200mm Four Head CO2 Laser Cutter, CMA1612-Q-A Laser Cutting System

Applicable Materials
Wooden products, paper, leather, cloth, polymethyl methacrylate, epoxy resin, acrylic, woolens, plastics, rubber, bamboo ware, garment materials, leather products, mobile phone accessories, adhesive decals, rhinestone, plastic nozzle, screen protector, jade and other non-metallic materials.

Cutting System

Model Version Laser Power (W) Laser Head Wokring Area (mm) Overall Dimension (mm) Weight (Kg) Repeated Positioning Accuracy (mm) Speed (m/min) Supply Voltage Working Environment
CMA1612-Q-A HoLi 60~130 Four 1450 × 1200 2090 × 2285 × 1291 740 ±0.1 0~30 AC 220~240V, 50/60Hz Temperature: 5~40℃; Humidity: 5~80%. No condensation, no dust or less dust.

Laser Processing Examples:

  • Belts laser cutting
  • Car seat cover laser cutting
  • Laser cutting of tent
  • Fabrics laser cutting
  • PU shoe laser cutting
  • Plush toy laser cutting

Product Feature
1. The laser cutter body is integrated with various auxiliary equipment’s power supply. The machine’s back is designed with a large cabinet for storing auxiliary equipment.
2. Independently researched and developed SmartCarve software can realize high-speed and stable running for precision laser cutting.
3. No. CMA1612-Q-A laser cutting system supports 10/100m Internet and USB 2.0 transmission.
4. This laser cutter supports the display of dynamic process path and coordinate points, with real-time display of processing progress.
5. This laser cutter supports engraving recovery after power off, as well as a working time preview within extreme precision.
6. Optional large format camera and projector positioning function
