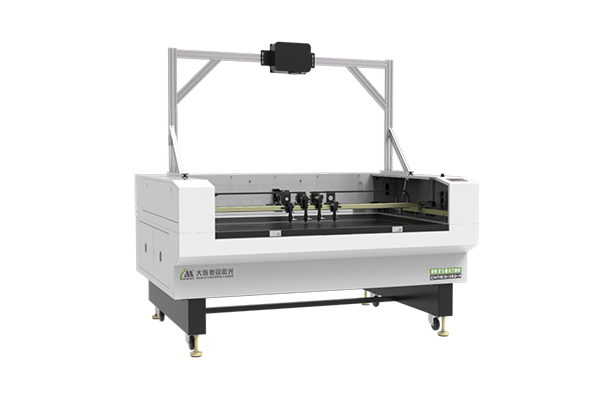

1500×600mm Auto Feeding CO2 Laser Cutting Machine, CMA1606C-FET-FA Equipment

Applicable Materials
CMA1606C-FET-FA laser cutting equipment is applicable for materials like mesh, suede leather, synthetic leather, cloth, wools, cotton and linen, non-woven fabric and more.

Cutting System

Model Laser power (W) Laser head Working area (mm) Overall dimension (mm) Weight (Kg) Speed (m/min) Supply voltage Working environment
CMA1606C-FET-FA 130 Double 1500×600 2385×2190×1900 980 0~24 Machine: Single phase AC220V
Fan: 380V, 50/60Hz
Temp:5~ 40°C , Humidity:5~80%.
No condensate water, no dust or less dust.

Laser Processing Examples:

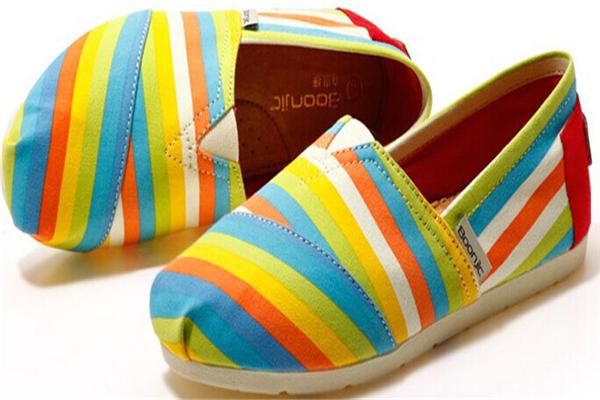

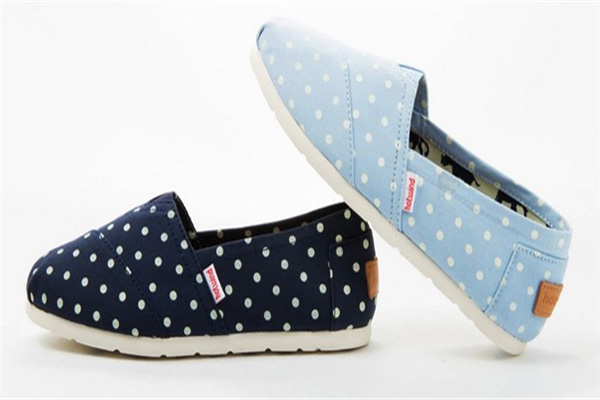

  • Cloth shoe laser cutting
  • Leather shoes laser cutting
  • Leather laser cutting

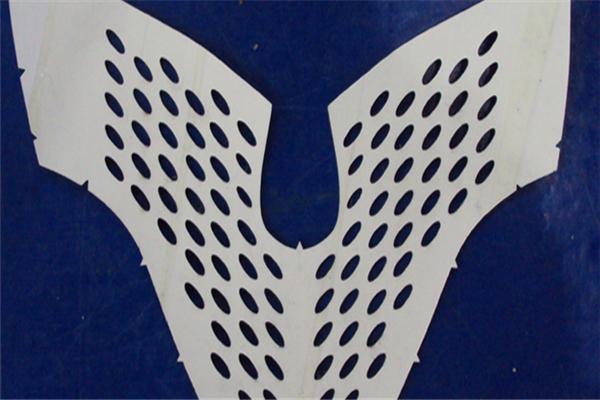

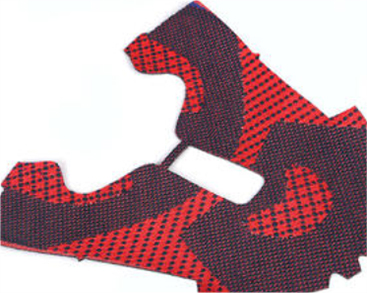

  • Shoe upper laser cutting
  • Shoe upper laser cutting
  • Shoe upper laser cutting
  • Plush toy laser cutting
  • Shoe upper laser cutting
  • Shoe upper laser cutting

Product Feature
1. Separate processing area and picking area allow for picking products without stop and prevent the operators from directly contacting the running optical systems and motion systems.
2. Front and rear synchronous material pressing devices. Front material following pressing device guarantees the feeding accuracy and rear device eliminates the risk of material movement. High processing precision is guaranteed even under multilayer feeding.
3. YUEMING patented conveyor raised-rib mesh belt can be cleaned and replaced section by section to lower the maintenance cost.
4. Motion system utilizes outside rail modules for stable structure and easy adjustment.
5. High-quality imported motor, lens and synchronous belt achieve stable machine performance.
6. Full enclosed optical system conforms to CE standards.
