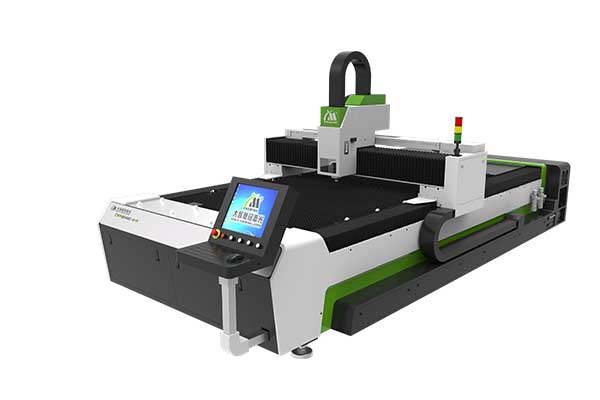

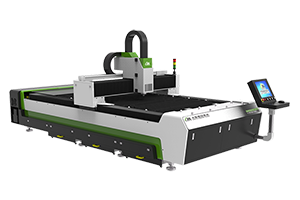

2000×4000mm Large Format Fiber Laser Cutter, CMA2040C-G-A Laser Cutting System

Applicable Materials
The CMA2040C-G-A is applicable for quick cutting metal materials, such as carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, aluminum coated zinc plate, brass, red copper and more.

Technical Parameter
Model CMA2040C-G-A
Laser power (W) 700-2000
Working area (mm) 2000×4000
Overall dimension (mm) 6400×2700×2000
Weight (kg) 4800
Position accuracy (mm) ±0.03/1000
Reposition accuracy (mm) ±0.02/1000
Maximum speed (m/min) 60
Maximum accelerated speed (G) 0.8
Power supply Three phase 380V/50Hz/60Hz
Working environment Temp: 0~ 45°C Humidity: ≤80% No condensate water, no dust or less dust.

Laser Processing Examples:

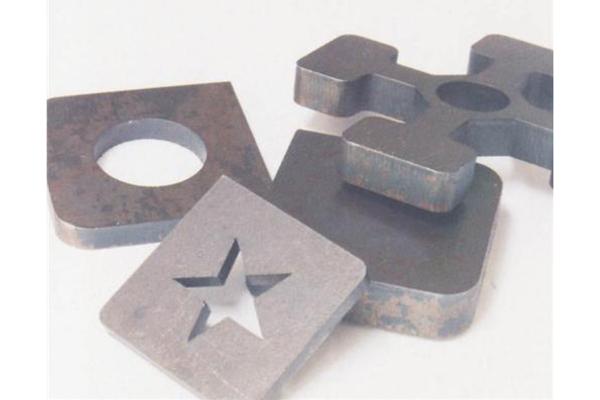

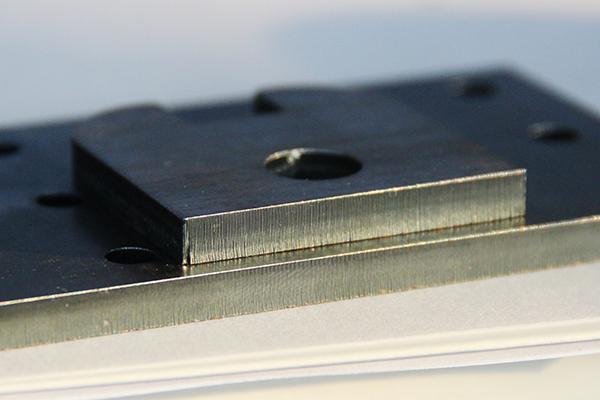

  • Laser cutting of 5mm carbon steel

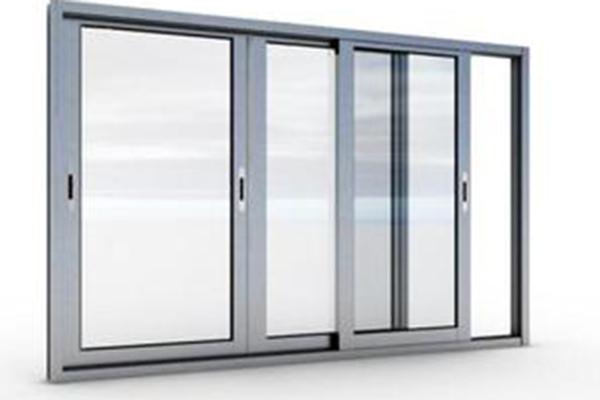

  • Laser cutting of aluminum alloy window

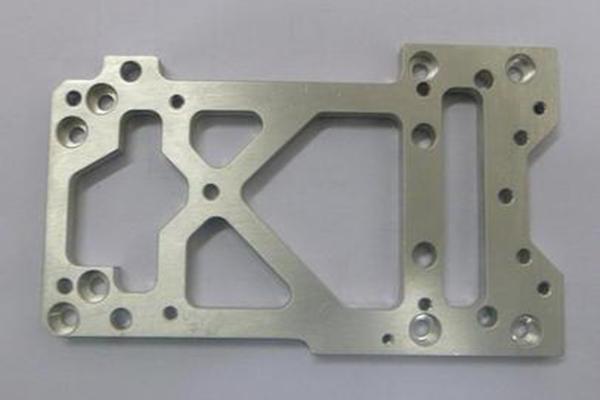

  • Laser cutting of aluminum plate

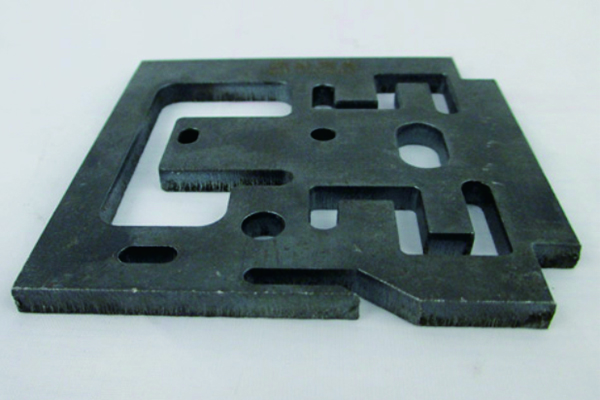

  • Laser cutting of carbon steel

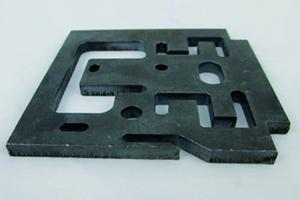

  • Laser cutting of carbon steel

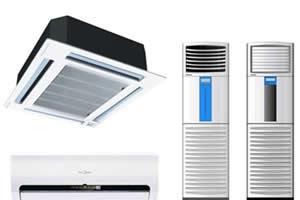

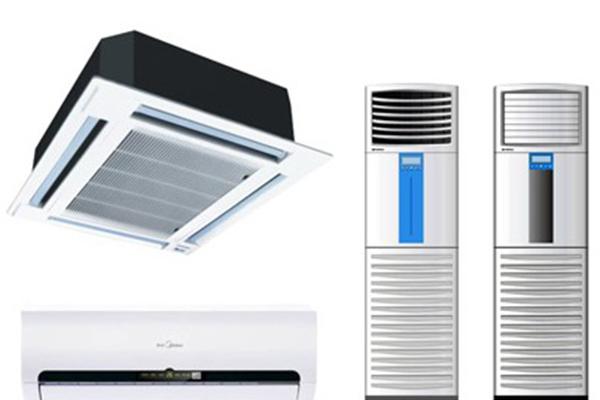

  • Laser cutting of central air conditioning

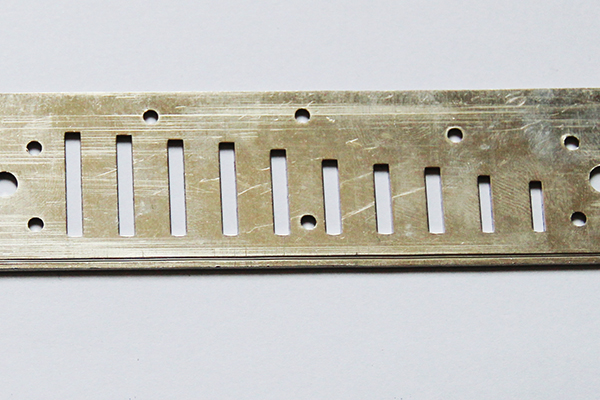

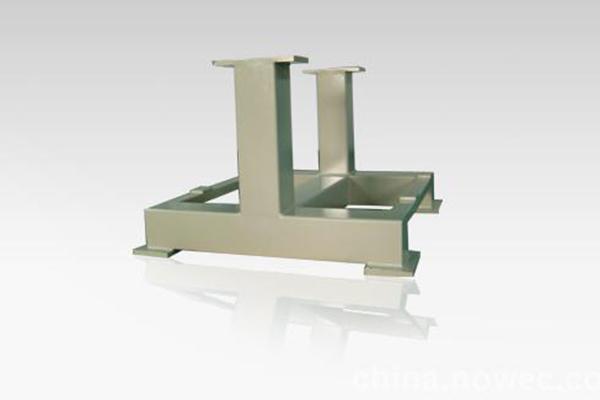

  • Laser cutting of sheet metal parts
  • Laser cutting of titanium

Product Feature
1. Equipped with a reinforced welded lathe bed and a finish milling processed double drive gantry. The non-metal laser cutting machine is annealed and processed by vibration aging technology to relieve stress and control the deformation deviation within ±0.02mm.
2. The crossbeam made through draw aluminum profiles and processed by finishing machining features light weight, high rigidity and good dynamic performance.
3. The cutting head features leapfrog function. Parabolic motion is adopted when cutting contours and leapfrog movement is available when switching cutting contours, which greatly improves cutting efficiency.
4. The crossbeam features system-controlled automatic concentrated lubrication without manual intervention, which ensures the motion precision and service life of the transmission parts.
