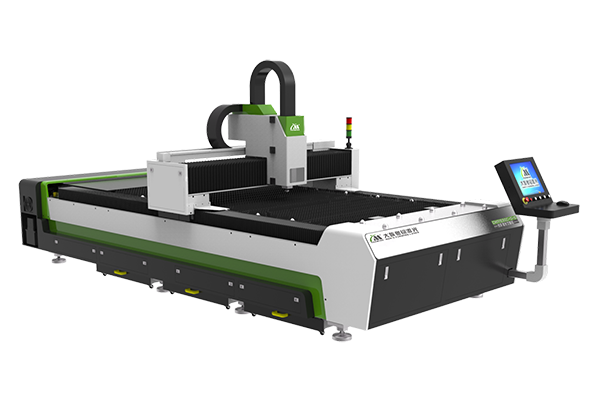

3000×1500mm Fiber Laser Cutter with Gantry Rack Double Drive System, CMA1530C-G-E

Technical Parameter
Model CMA1530C-G-E
Laser power (W) 500-1500
Working area (mm) 3000×1500
Overall dimension (mm) 5400×2200×20000
Weight (kg) 4000
Position accuracy (mm) ±0.03/1000
Reposition accuracy (mm) ±0.02/1000
Maximum speed (m/mim) 60
Maximum accelerated speed (G) 0.8
Power supply Three phase 380V/50Hz/60Hz
Working environment Temp: 0~ 45°C Humidity: ≤80% No condensate water, no dust or less dust.

Due to the fact that our equipment is consistently being optimized, upgraded and improved to keep up with changing market needs, the above parameters are for reference only. Actual parameters are subject to the purchased machine, and we reserve the right for final interpretation.

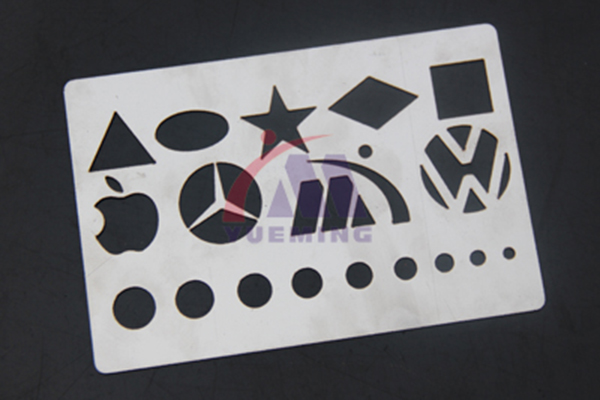

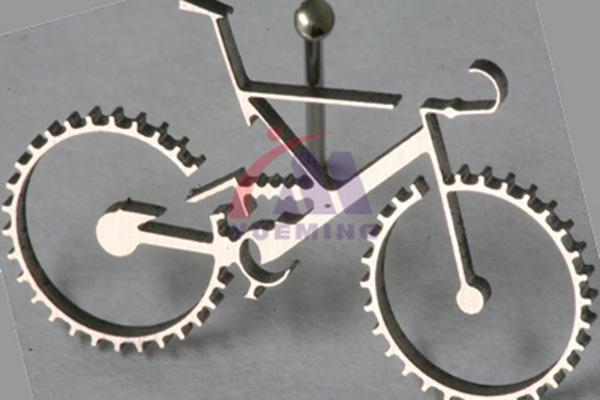

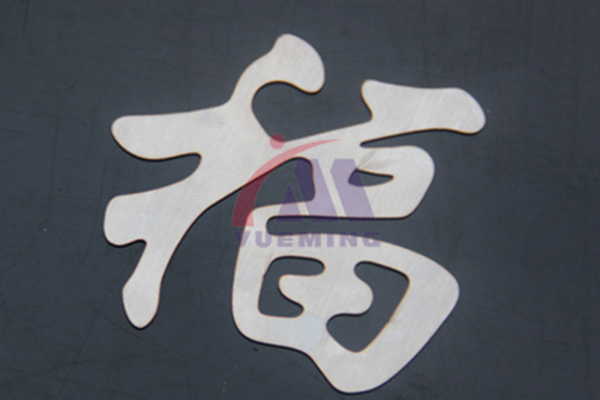

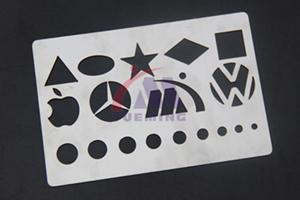

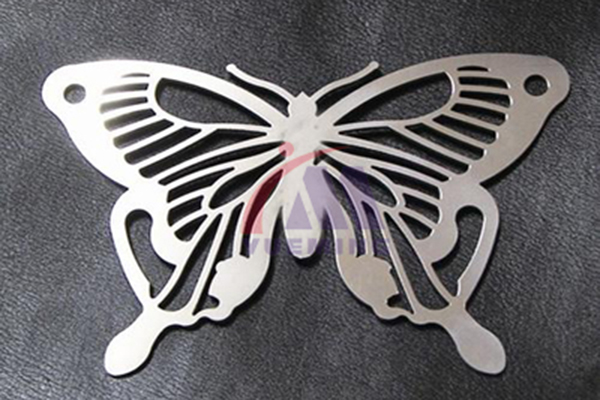

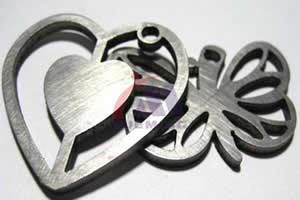

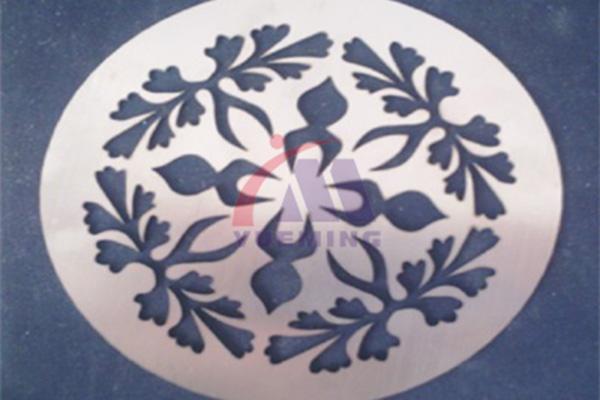

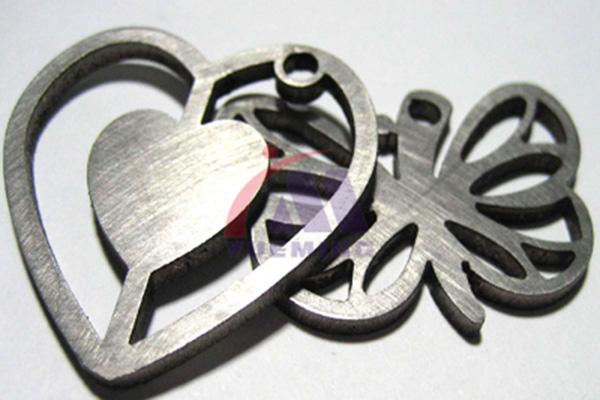

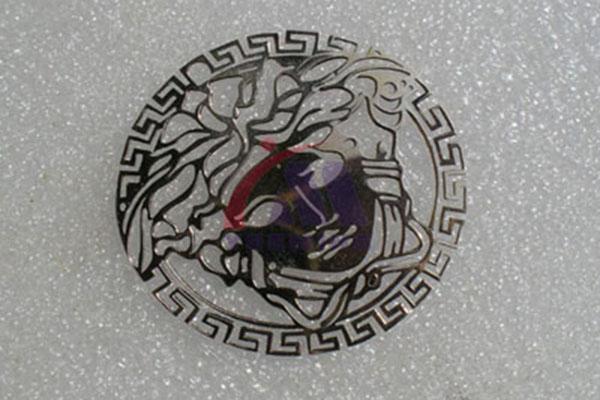

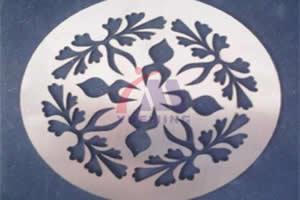

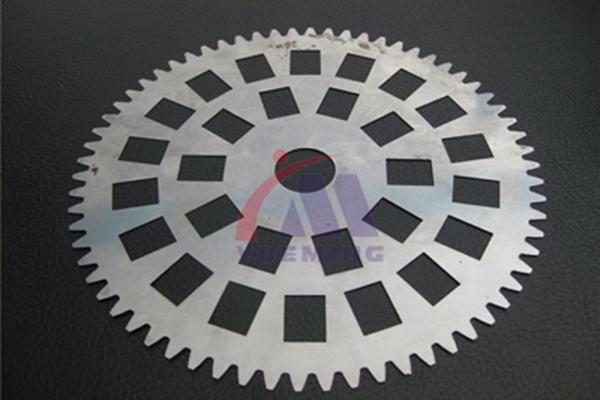

Laser Processing Examples:

  • Stainless steel laser cutting
  • Steel laser cutting
  • Sheet metal laser cutting
  • Stainless steel sheet laser cutting
  • Light sheet steel laser cutting
  • Sheet steel laser cutting
  • Steel plate laser cutting
  • Thin steel plate laser cutting

Product Feature
1. Equipped with a reinforced welded lathe bed and a finish milling processed double drive gantry. The non-metal laser cutting machine is annealed and processed by vibration aging technology to relieve stress and control the deformation deviation within ±0.02mm.
2. The crossbeam made through draw aluminum profiles and processed by finishing machining features light weight, high rigidity and good dynamic performance.
3. The cutting head features leapfrog function. Parabolic motion is adopted when cutting contours and leapfrog movement is available when switching cutting contours, which greatly improves cutting efficiency.
4. The crossbeam features system-controlled automatic concentrated lubrication without manual intervention, which ensures the motion precision and service life of the transmission parts.
