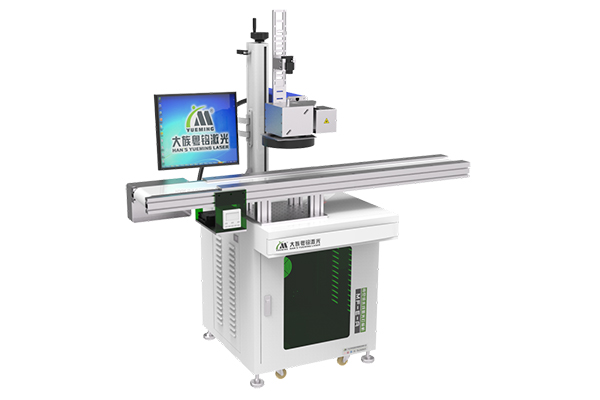

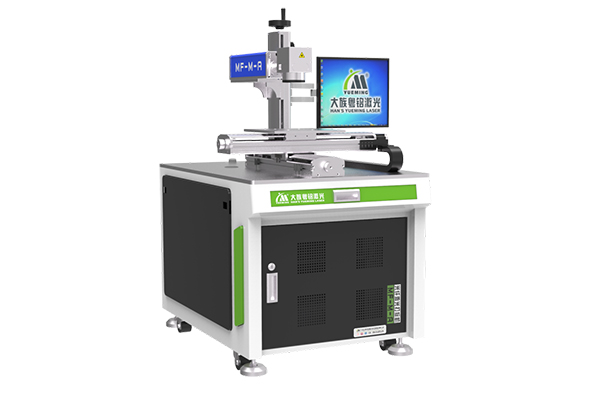

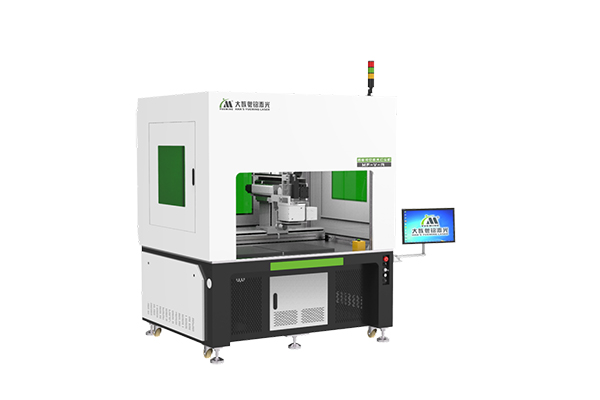

Vision Laser Marking Machine

  • MF-M-A
  • MF-E-A
  • MF-V-A
Model MF-M-A MF-E-A MF-V-A
Features High-precision X / Y motion module design for large workpiece or multiple-jig positioning processing Modular components. Step motor feeding system, easy for loading; High-precision X / Y motion module, dual vision system design, dual-station processing area, online loading and unloading process, higher efficiency.
Laser power(W) 20/30/50/100 20/30/50/100 20/30/50/100
Working area(mm) 175x175 110x110 70x70
Lifting height(mm) 100-500(800 optional)
Min. line width(mm) 0.03
Min. character(mm) 0.2
Supported graphic format MP, PLT, AI, DXF, etc.
Supply voltage AC220V±10%,50HZ/60HZ
Overall dimension(mm) 770x1070x1600 1500x750x1450 1650x1350x1950
CCD visual range 120x120 120x120 600x600/120x120
Visual accuracy (mm) ±0.1
Weight (Kg) 100 100 400
Working environment Temp.: 10 ~35 ℃, humidity: 5 ~8 5 %, no condense water, no dust or less dust.
Total power(kw) 2 1 2

Laser Processing Examples:

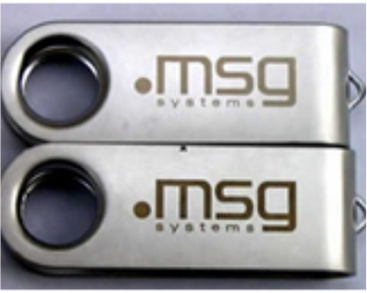

  • Stainless steel marking
  • Charger marking

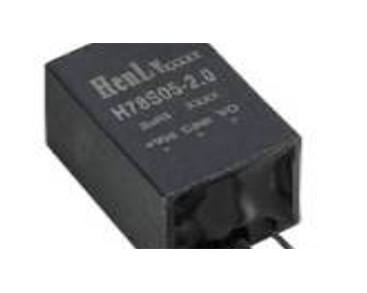

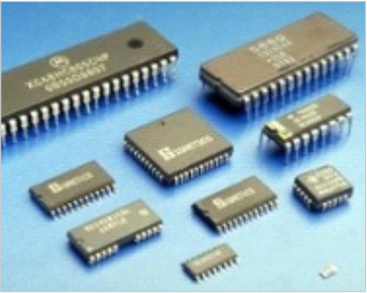

  • Electronic components marking

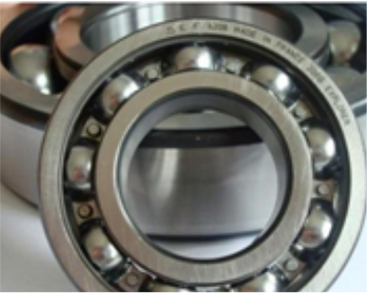

  • Bearings marking

Product Feature
1.Industrial laser source and high-speed galvo scanner with stable performance;
2.Self-developed laser marking software, easy for maintenance and operation;
3.Self-developed powerful vision function achieves visual match positioning and visual contour identification.
4.Self-developed external coaxial vision system: auto-matching camera area and marking area to broaden the visual working area and highly improve marking accuracy.
5.Module design allows for free combination of different functions in different application scenarios, satisfying diverse production requirements.
6.Dual vision system design with product positioning and secondary positioning for processing improves loading and processing efficiency.
7.Servo motor or step motor is optional upon accuracy requirement.
