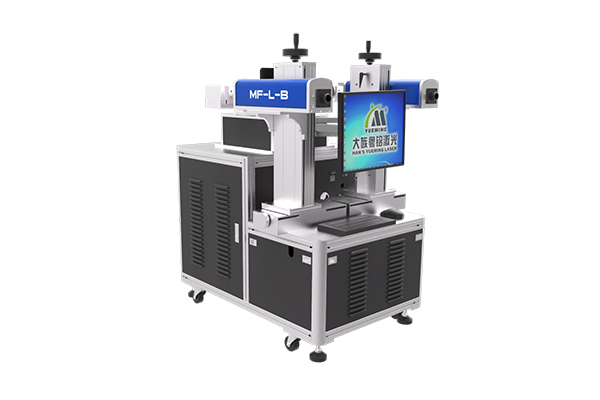

Double Head 8 Position Bulb Fiber Laser Marking Machine, MF20-L-B Bulb Marking

Applicable Materials
The MF20-L-B bulb marking machine is applicable for materials like iron cast, stainless steel, aluminum alloy, zinc alloy, copper, nickel plating, zinc coating, aluminum oxide, plastics(PVC/PC/PU), ABS materials, epoxy resin and so on.

Model Laser power (W) Working area(mm) Up-down adjustable distance (mm) Left-right adjustable distance (mm) Minimum line width(mm) Minimum character
Graphic format
Overall dimension
Total power
MF20-L-B Double Head 8 Position Fiber Laser Marker for Bulb 20/ 30 / 50 175 x 175 0-200 0-200 0.02 0.2 BMP, PLT, AI, DXF, etc. AC220V±10%, 50HZ/60HZ 1000 X 750 X 1100 90 Temp: 10~ 35°C, Humidity:5~85%. No condensate water, no dust or less dust. 2

Laser Processing Examples:

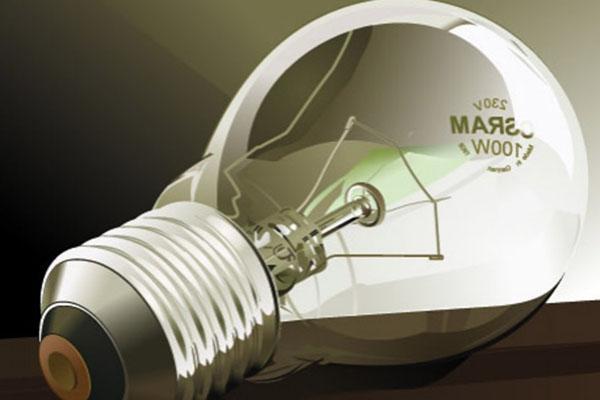

  • Energy-saving lamp laser marking

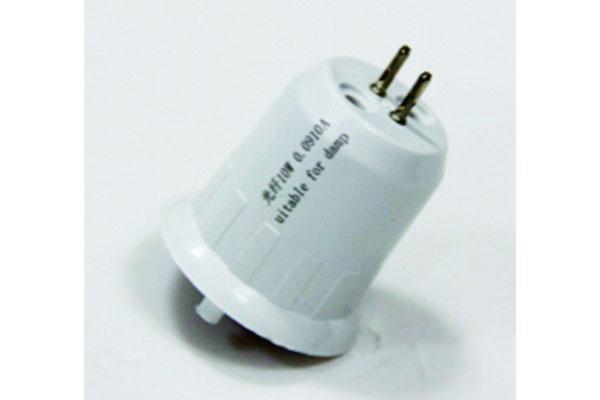

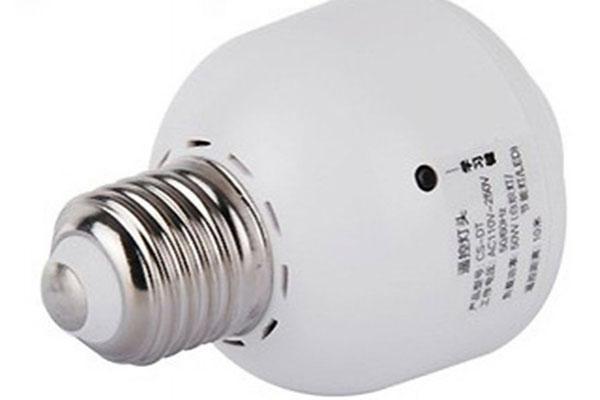

  • Lamp head laser marking

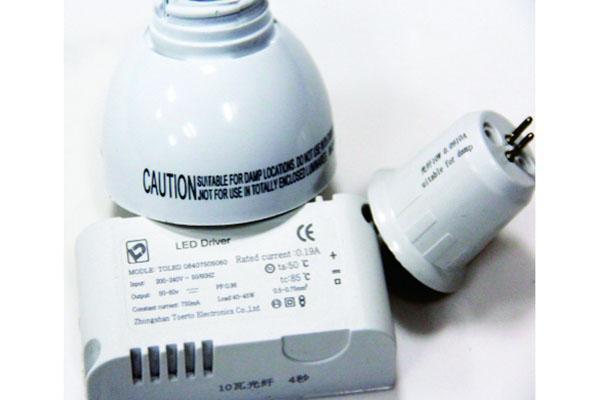

  • Lampholder, lamp head and plastic shell laser marking

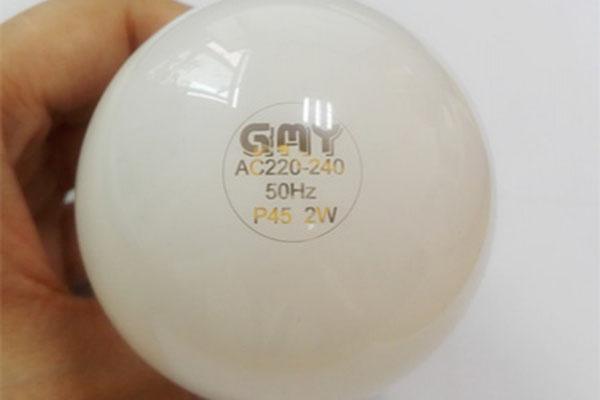

  • Lampshade laser marking

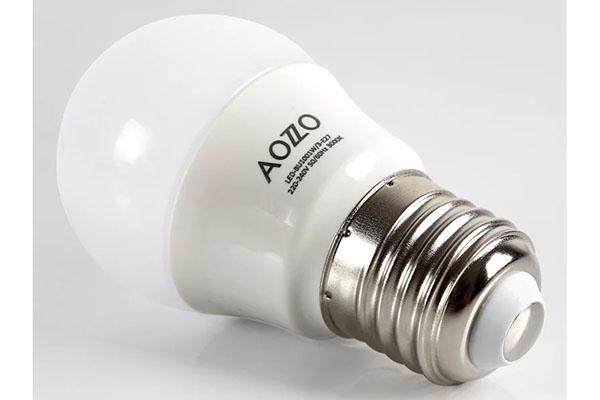

  • LED bulb laser marking

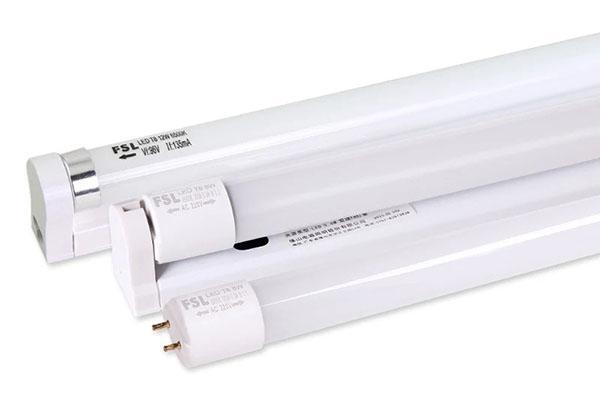

  • Light tube laser marking

Product Feature
1. Fiber laser system adopts high-quality light source which has high-quality light spot, laser power with uniform density and stable laser output power. Thus it can satisfy mainstream market’s application needs.
2. Han’s Yueming self-owned high-speed digital scanning galvanometer has features of small volume, fast speed and good stability.
3. Independently researched and developed control system SmartScanner has powerful functions, excellent performance and easy operation. Software system can provide long-term free upgrade and maintenance. We can also provide custom service to meet client’s special requirement.
4. An eight-station turntable can realize automatic multi-station rotary shifting and rotary marking of each small chuck. Manual material feeding and blanking can be done while marking so as to improve processing efficiency.
5. System is equipped with special-purpose fixture that is adaptable to bulb base. Other standards fixture can also be customized to meet onsite technique application needs.
6. Two 4-position table with auto rotation can mark on two bulb at same time, realize semi-automatic in production site.
