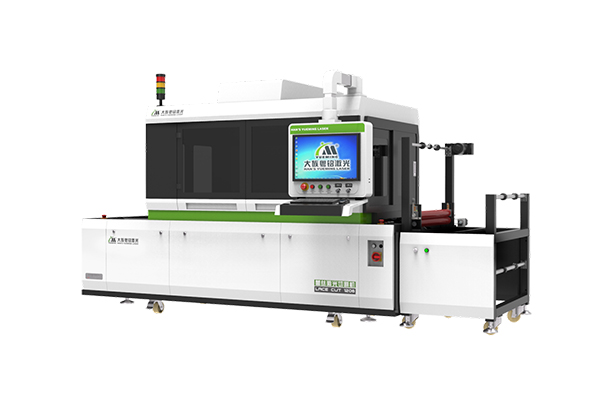

CMA1206C-DFV-A Vision Laser Cutting Machine

Functions and features
  • CMA1206C-DFV-A vision laser cutting machine has highly efficient and independent dual-motion system. It can realize the effect of processing of two cutting machines. The floor area is smaller and the efficiency is higher.
  • The core units are imported so that the performance of the whole machine is stable. Servo motor, PLC and other units are all purchased from international famous brands such as Panasonic and Siemens.
  • This laser cutting machine is equipped with professional soft material cutting control software: Smart Carve system which is independently developed by Han’s Laser. Our company has over 10 years of experience in laser application industry.
  • The cutting machine has dual industrial camera. The high precision camera can realize accurate positioning and cutting. The process of manual positioning and fixture positioning can be reduced. All the positioning processes are automatically accomplished by the camera system.
  • The material feeding and discharging manipulator can automatically accomplish feeding and discharging of material. The only responsibility of the operators is putting the material onto the worktable and removing the cutting finished workpiece from the worktable.
  • This machine can realize automatic processing. All the process from material feeding, cutting, and material discharging are all accomplished by the system automatically. The labor intensity of the operators can be reduced. And the production efficiency can be higher because multi-machines can be controlled by one people.
Technical parameters
Working parameter CMA0505C-DH-FA
Cutting range 500*500mm
Laser power 130W
Drive system Manipulator
Max idling speed 1000mm/s
Repeated positioning accuracy ±0.1mm
Recognizable graphic format PLT, DXF, AI etc.
Working environment Temperature: 5℃-40℃; humidity: 5%-80% (no dew)
Power < 10KW (with cooling water machine and without fan)
Power supply AC220±5% 、50/60HZ
Total weight 2300Kg
Overall dimension 2950*4300*2100mm

Suitable material:
CMA1206C-DFV-A vision laser cutting machine is suitable for processing of upper sheet material for shoes.

Laser Processing Examples:
