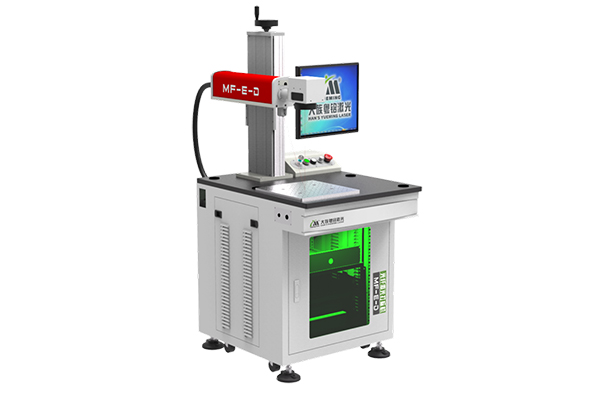

High End Version Fiber Laser Marking Machine, MF20-E-D High End Version Laser System

Applicable Materials
The MF20-E-D standard edition laser system is applicable for surface marking of materials, such as plastics, stainless steel, aluminum oxide, cast iron, wooden products, copper and so on.

Model Laser power W) Working area
Lifting height
Minimum line width
Minimum character
Graphic format
Overall dimension
Total power
MF20-E-D high-end version 20/ 30 / 50 70x70
100~500 0.03 0.2 BMP, PLT, AI, DXF, etc. AC220V±10%,50HZ/60HZ 750 X 600 X 1270 100 (Estimation) Temp:10~ 35°C , Humidity:5~85%. No condensate water, no dust or less dust. 1

Laser Processing Examples:

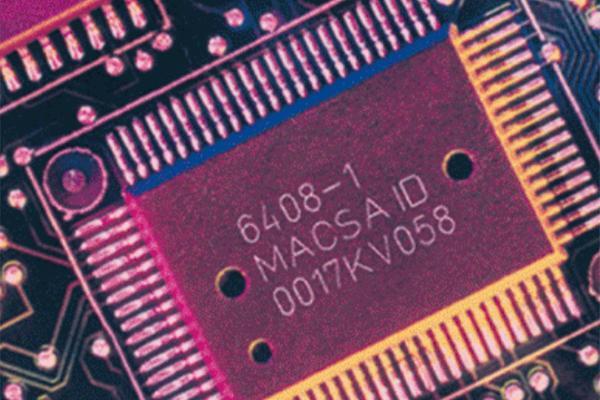

  • Chips laser marking

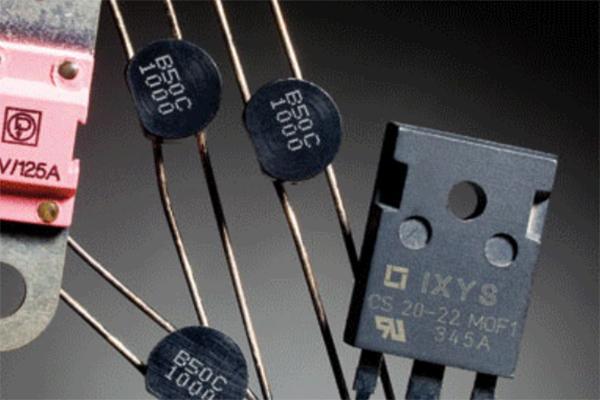

  • Electronic component laser marking

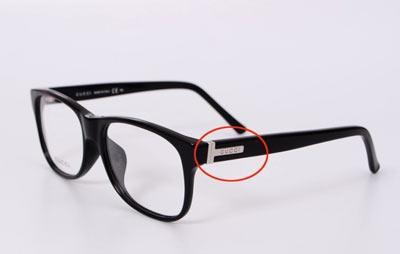

  • glasses laser marking

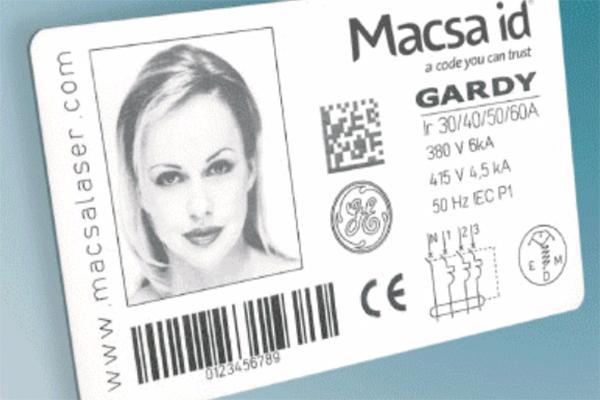

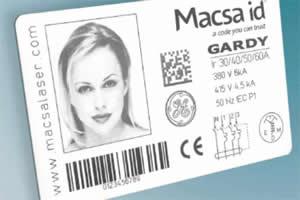

  • ID card laser marking

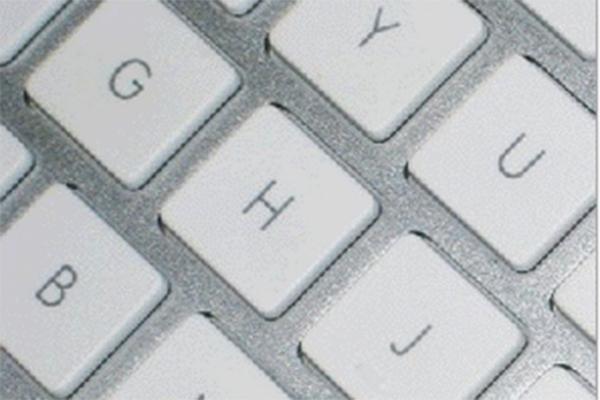

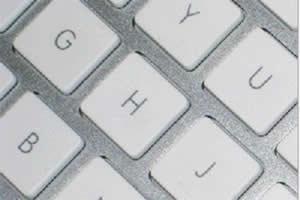

  • Keyboard laser marking

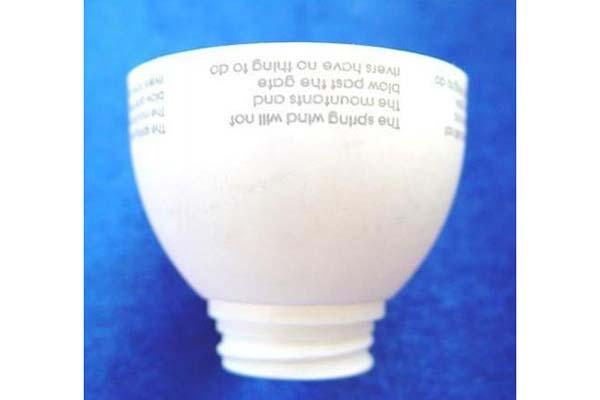

  • Lamps and lanterns laser marking

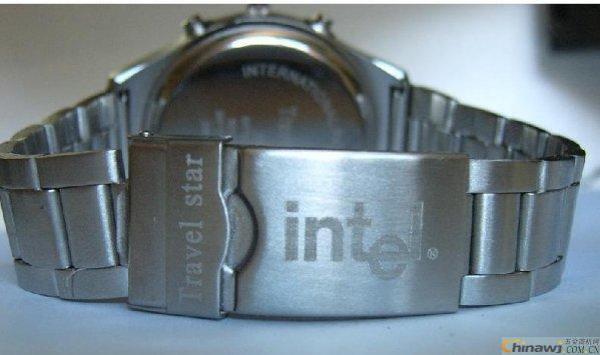

  • Watchband laser marking

Product Feature
1. The fiber laser system uses a high-quality laser source that offers precise light spot and laser power with a uniform density and stable output. It features no light streak and a high contrast resistance, allowing it to satisfy mainstream market application needs.
2. Han’s Yueming’s OEM numerical high-speed scanning galvanometer features a small volume, high speed and excellent stability.
3. The control system is powerful and is capable of carrying out various data optimizes processes based on different techniques. Using a shortcut key, it supports multiple languages and up to 256 layers of color, satisfying market needs.
4. The die-casting mold manufactured lifting platform has a built-in linear guide with a stable structure and simple design.
5. Enhanced frame and auxiliary focusing function.This machine adopts the marble platform which effectively improves the product positioning accuracy and stability. Meanwhile, equipped with the double red light focusing system, electric lifting frame, easy to achieve the rapid focusing, improve the production efficiency and reduce the operator's workload.
