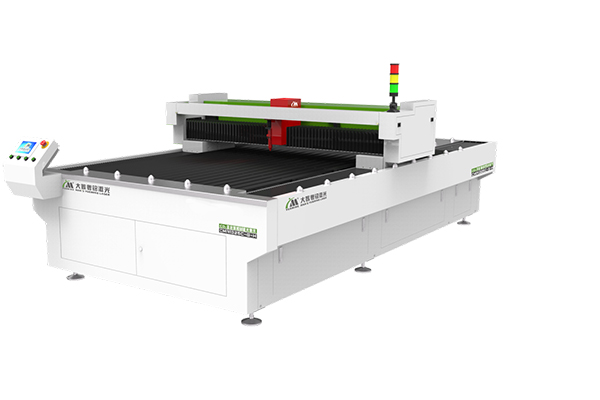

Non-metal Plate Laser Cutting Machine, CMA1325C-G-H

Applicable materials
Wood board, plywood, medium-density fiberboard, acrylic plate and other large-format non-metal plates

Technical Parameter

Model CMA1325C-G-H
Laser power (W) 130~350
Working area (mm) 1300×2500
Overall dimension (mm) 3850×2190×1200
Weight (kg) 1800
Position accuracy (mm) ±0.05/1000
Reposition accuracy (mm) ±0.03/1000
Maximum speed (m/min) 30
Power supply 220V (Auxiliary machine: 380V)/50Hz - 220V/50Hz/60Hz
Working environment Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust.


Product Feature
1. Equipped with a reinforced welded lathe bed and a finish milling processed large gantry. The non-metal laser cutting machine is annealed and processed with vibration aging technology to relieve stress and control the deformation deviation within ±0.02mm.
2. High-strength aluminum alloy gantry features lighter weight, smaller resonance and smoother operation compared to traditional steel beams.
3. Perfect for cutting density board, acrylic plate and other non-metal plates.
