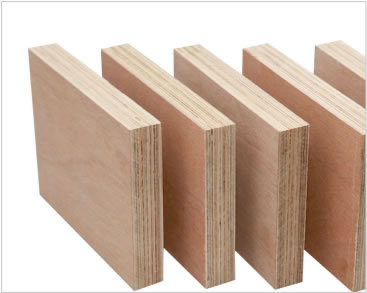

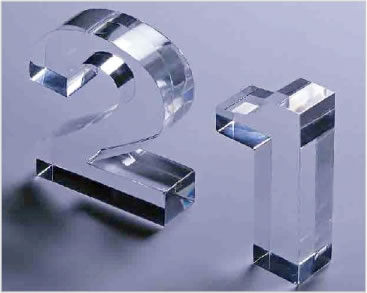

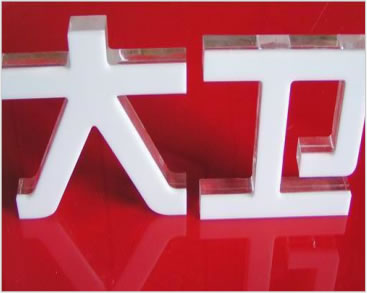

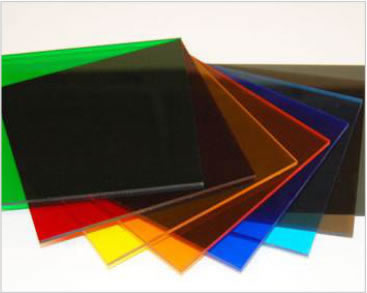

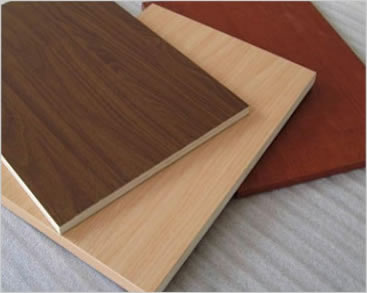

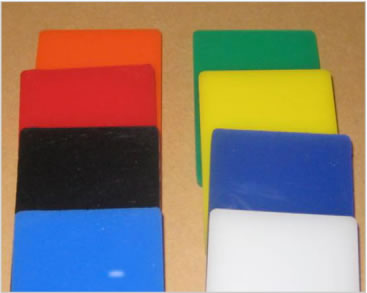

Wood board, plywood, medium-density fiberboard, acrylic plate and other large-format non-metal plates.
|Laser power (W)||130~350|
|Working area (mm)||1300×2500|
|Overall dimension (mm)||4170x2350x1260|
|Position accuracy (mm)||±0.05/1000|
|Reposition accuracy (mm)||±0.03/1000|
|Maximum speed (m/min)||70|
|Power supply||220V(Auxiliary machine: 380V)/50Hz - 220V/50Hz/60Hz|
|Working environment||Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust.|

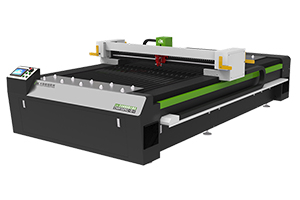

1. The non-metal laser cutting system is equipped with a reinforced welded lathe bed and a finish milling processed large gantry. The laser cutting system is annealed and processed by vibration aging technology to relieve stress and control the deformation deviation within ±0.02mm.
2. High-strength aluminum alloy gantry features lighter weight, smaller resonance and smoother operation compared to traditional steel beams.
3. Perfect for cutting density board, acrylic plate and other non-metal plates.
